Find your seal type below and fill in what you know. If you are not sure of your seal type, scroll to the bottom and tell us what you have.

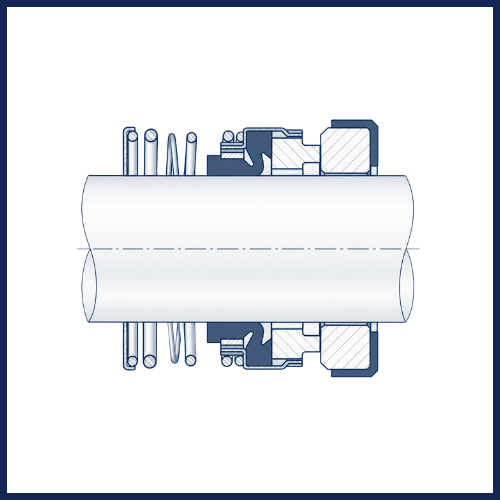

A mechanical seal uses two very flat faces to seal around a rotating shaft. The faces, elastomer, spring style, and seat design all work together. The factory seal may have been sized for clean water or a specific fluid. If the fluid, temperature, chemical exposure, or duty cycle has changed, a different material combination may perform better.
Choosing the Right Material
Mechanical seal material choice usually comes down to the face combination and the elastomer. The factory seal may be fine for clean water, but a better material may be needed for chemicals, hot water, wastewater, abrasive fluid, or dry running risk.
What Changes the Selection
What Helps Us Quote It

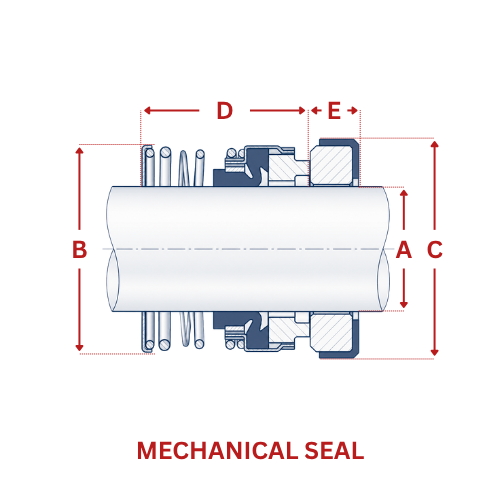

Shaft size, seat OD and thickness, seal style, face material, elastomer, pump brand and model, fluid, temperature, pressure, photos of the old seal, and any part numbers or markings on the seal faces or springs all help narrow down the right replacement.
This is one common mechanical seal style. Many other mechanical seal designs are available. If your seal looks different, upload photos, markings, or an old quote and we can still help.

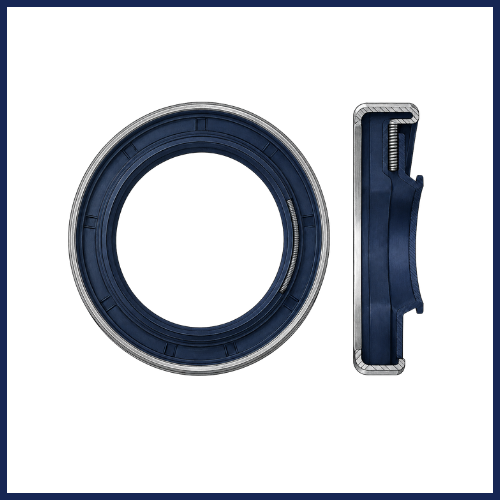

A lip seal uses a flexible sealing lip that rides on a shaft to keep lubricant in or contamination out. The lip material, case style, garter spring, and whether it is a single or double lip all affect how well it performs. If the fluid, temperature, shaft speed, or environment has changed since the equipment was new, a different lip material may be worth considering.
Lip material should match the fluid being sealed, the temperature range, shaft speed, and the environment around the equipment.

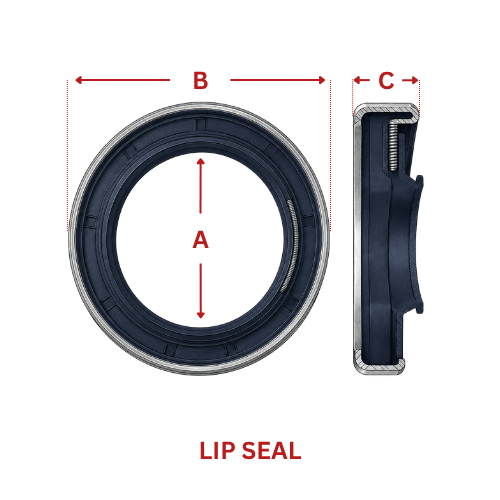

ID, OD, and width measurements, lip style, spring type, case style, lip material, equipment type, the media being sealed, photos of the old seal, and any numbers or markings on the metal case or rubber all help.

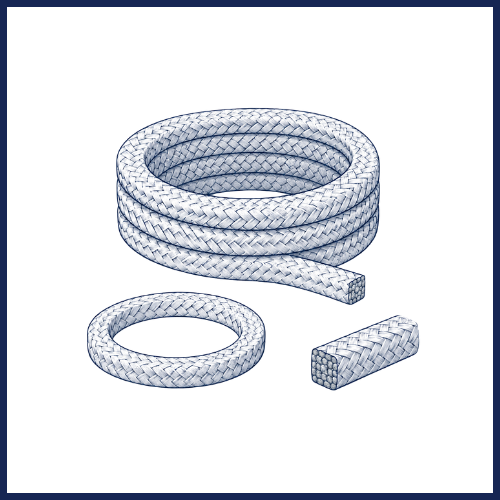

Packing is braided sealing material compressed around a shaft or stem to control leakage. It is widely used in pumps, valves, agitators, and other rotating or reciprocating equipment. Packing choice depends heavily on the fluid, pressure, temperature, shaft speed, and whether it is a pump or valve application.
Different packing materials are suited to different service conditions. Choosing based on only one factor such as the fluid may not be enough.
Shaft diameter, stuffing box bore, cross-section size, number of rings currently in the box, fluid, pressure, temperature, RPM, photos, and any information from the old packing or equipment nameplate all help.
View our visual guide for measuring, cutting, and installing compression packing.
PACKING TOOLS

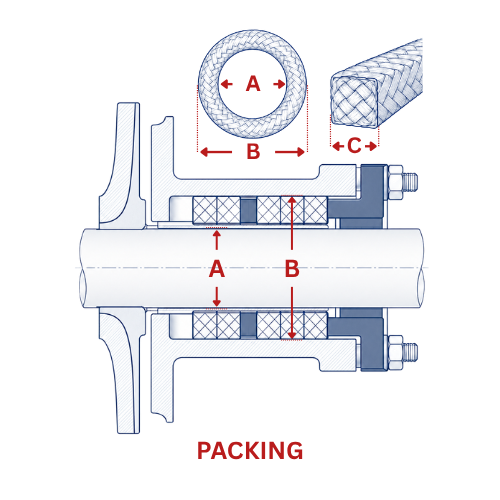

Most pump packing is square braided packing. Measure the shaft size, measure the stuffing box bore, and measure the packing cross section if you have the old packing. If you are not sure, upload photos of the old packing, stuffing box, shaft, or gland area.
Packing Extractor Tool Set
Need a packing removal tool? We can quote a packing extractor tool set with your packing request.

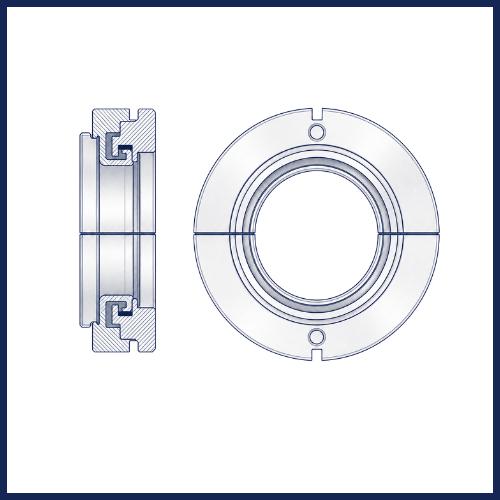

A bearing isolator protects bearings by helping keep contamination out and lubricant in. It is often a non-contact or labyrinth-style sealing device, which means it does not wear the shaft like a standard lip seal. This can make it a more durable long-term option for equipment that runs frequently or is exposed to contamination.
Choosing the Right Selection
Bearing isolator selection depends on shaft size, housing design, lubrication type, equipment orientation, and the environment the equipment operates in.

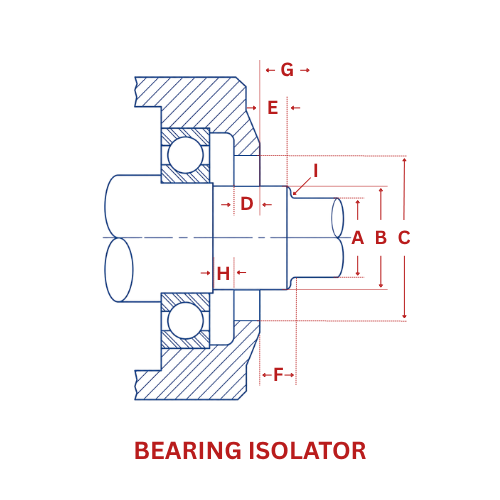

Shaft diameter, OD, and width, housing type, equipment type and model, orientation, lubrication method, the environment the equipment operates in, photos of the existing seal or housing bore, and any part numbers or markings on the existing seal all help.

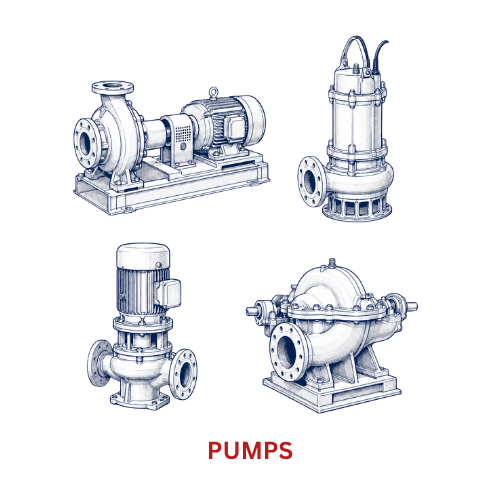

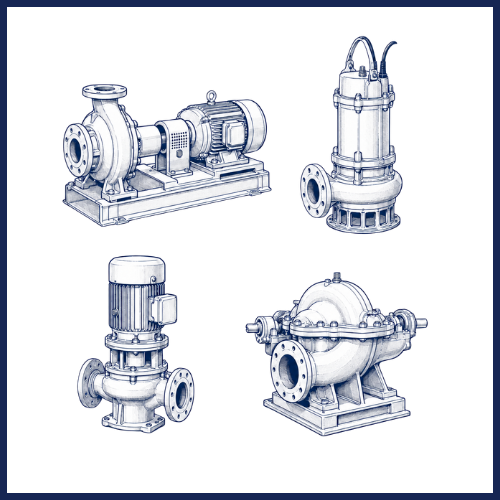

Need a complete pump or pump part? Send us what you have. Photos, nameplates, old quotes, model numbers, part numbers, impeller details, casing information, seal chamber details, and application information all help us quote the right item.
What We Can Help With
We handle complete pump replacements, pump assemblies, and individual pump repair parts. Send us what you have and we will work from there.
Pump brand, model, and nameplate photo, serial number, part number, impeller size, casing details, seal chamber information, fluid type and temperature, flow, head or pressure, horsepower, voltage and phase, any physical dimensions or specifications, photos of the existing pump or part, and any old quotes or order history all help us find the right replacement or equivalent.
We can help quote many common pump styles, including:
Final step. Tell us where to send your quote.
